| Series |
Photo |
PartNumbers |
Rated Power |
IF(mA) |
Luminous(Im) |
Color
Temperature |
VF(V) |
Package Outline
Dimensions
(mm) |
Datasheet |
| 2016 |
 |
T201630A-XXR0 |
0.1W |
30 |
6 |
620 |
2.00 |
3.0*1.4*1.33 |
|
| 3528 |
 |
T352820X-XXY1/T3528G0X-XXY1 |
0.1W/0.5W |
20/150 |
6/40 |
白转黄/白转黄 |
2.90/3.00 |
3.5*2.8*1.8/3.5*2.8*1.8 |
|
| 3528 |
|
T352820X-XXY1/T3528G0X-XXY1 |
0.1W/0.5W |
20/150 |
6/40 |
白转黄/白转黄 |
2.90/3.00 |
3.5*2.8*1.8/3.5*2.8*1.8 |
|
| 3528 |
 |
T352820X-XX60 |
0.1W |
20 |
6.5 |
6000K |
2.90 3.5*2.8*1.8 |
|
|
| 3528 |
 |
T3528G0S-XXR1 |
0.5W |
150 |
28 |
620 |
2.00 |
3.5*2.8*1.8 |
|
| 2835 |
 |
T283560S-XX60/T2835G5S-XX60/T2835M5S-XX60 |
0.2W/0.5W/1.0W |
60/150/350 |
30/75/140 |
6000K/6000K/6000K |
2.90/3.00/3.10 |
2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2835 |
|
T283560S-XX60/T2835G5S-XX60/T2835M5S-XX60 |
0.2W/0.5W/1.0W |
60/150/350 |
30/75/140 |
6000K/6000K/6000K |
2.90/3.00/3.10 |
2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2835 |
|
T283560S-XX60/T2835G5S-XX60/T2835M5S-XX60 |
0.2W/0.5W/1.0W |
60/150/350 |
30/75/140 |
6000K/6000K/6000K |
2.90/3.00/3.10 |
2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2835 |
 |
T283560S-XXY1/T2835G0S-XXY1 |
0.2W/0.5W |
60/150 |
23/60 |
白转黄/白转黄 |
2.90/3.00 |
2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2835 |
|
T283560S-XXY1/T2835G0S-XXY1 |
0.2W/0.5W |
60/150 |
23/60 |
白转黄/白转黄 |
2.90/3.00 |
2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2835 |
 |
T283530S-XXR1/T283560S-XXR0/T2835G5S-XXR0/T283560S-XXA0/T2835G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
6/14/33/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2835 |
|
T283530S-XXR1/T283560S-XXR0/T2835G5S-XXR0/T283560S-XXA0/T2835G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
6/14/33/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2835 |
|
T283530S-XXR1/T283560S-XXR0/T2835G5S-XXR0/T283560S-XXA0/T2835G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
6/14/33/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2835 |
|
T283530S-XXR1/T283560S-XXR0/T2835G5S-XXR0/T283560S-XXA0/T2835G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
6/14/33/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2835 |
|
T283530S-XXR1/T283560S-XXR0/T2835G5S-XXR0/T283560S-XXA0/T2835G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
6/14/33/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7/2.8*3.5*0.7 |
|
| 2016 |
 |
T201630S-XXR0/T201660S-XXR0/T2016G5S-XXR0/T201660S-XXA0/T2016G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
5/13/32/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62 |
|
| 2016 |
|
T201630S-XXR0/T201660S-XXR0/T2016G5S-XXR0/T201660S-XXA0/T2016G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
5/13/32/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62 |
|
| 2016 |
|
T201630S-XXR0/T201660S-XXR0/T2016G5S-XXR0/T201660S-XXA0/T2016G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
5/13/32/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62 |
|
| 2016 |
|
T201630S-XXR0/T201660S-XXR0/T2016G5S-XXR0/T201660S-XXA0/T2016G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
5/13/32/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62 |
|
| 2016 |
|
T201630S-XXR0/T201660S-XXR0/T2016G5S-XXR0/T201660S-XXA0/T2016G5S-XXA0 |
0.1W/0.2W/0.5W/0.2W/0.5W |
30/60/150/60/150 |
5/13/32/12/23 |
620/620/620/589/590 |
2.00/2.00/2.00/2.10/2.10 |
2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62/2.20*1.60*0.62 |
|
| 2016 |
 |
T201660S-XX60/T2016G5S-XX60 |
0.2W/0.5W |
60/150 |
28/65 |
6000/6000 |
2.90/3.00 |
2.20*1.60*0.62/2.20*1.60*0.62 |
|
| 2016 |
|
T201660S-XX60/T2016G5S-XX60 |
0.2W/0.5W |
60/150 |
28/65 |
6000/6000 |
2.90/3.00 |
2.20*1.60*0.62/2.20*1.60*0.62 |
|
| 2016 |
 |
T201660S-XXY1/T2016G0S-XXY1 |
0.2W/0.5W |
60/150 |
23/52 |
白转黄/白转黄 |
2.90/3.00 |
2.20*1.60*0.62/2.20*1.60*0.62 |
|
| 2016 |
|
T201660S-XXY1/T2016G0S-XXY1 |
0.2W/0.5W |
60/150 |
23/52 |
白转黄/白转黄 |
2.90/3.00 |
2.20*1.60*0.62/2.20*1.60*0.62 |
|

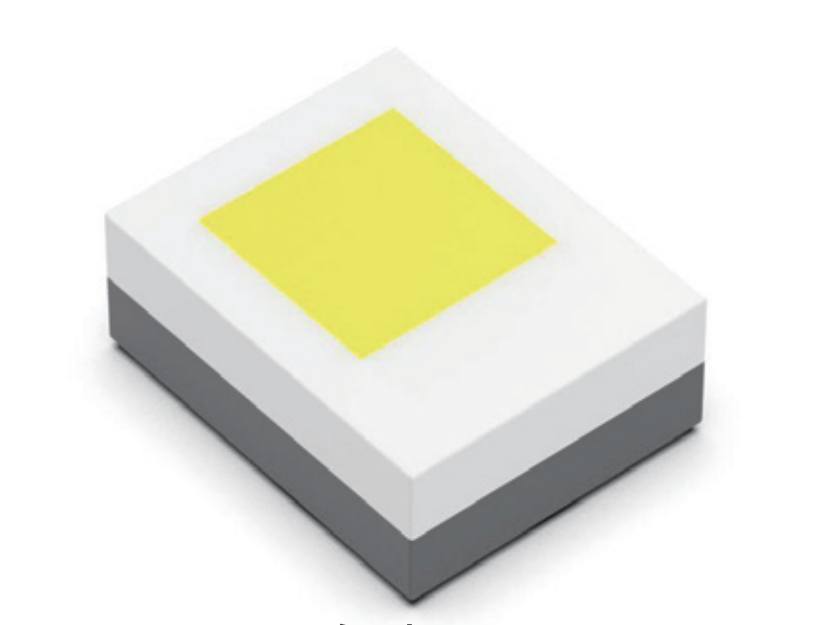

| 2016 |
 |
D2016T1S-XX60 |
3W |
1000 |
400 |
6000 |
3.10 |
2.20*1.60*0.8 |
|
| 2016 |
 |
D2016T1S-XXY0 |
3W |
1000 |
260 |
白转黄 |
3.10 |
2.20*1.60*0.8 |
|
| D2016 |
 |
D2731T1S-XX60 |
6W |
1000 |
800 |
6000 |
6.20 |
2.70*3.10*0.8 |
|

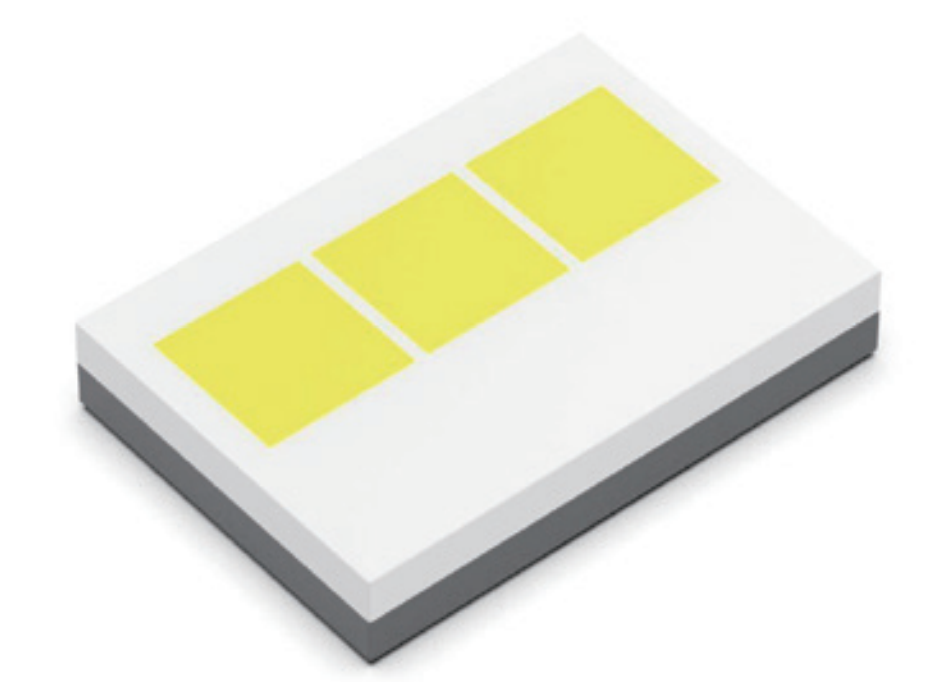

| 3831 |
 |
D3831T1S-XX60 |
9W |
1000 |
1100 |
6000 |
9.30 |
3.80*3.10*0.8 |
|

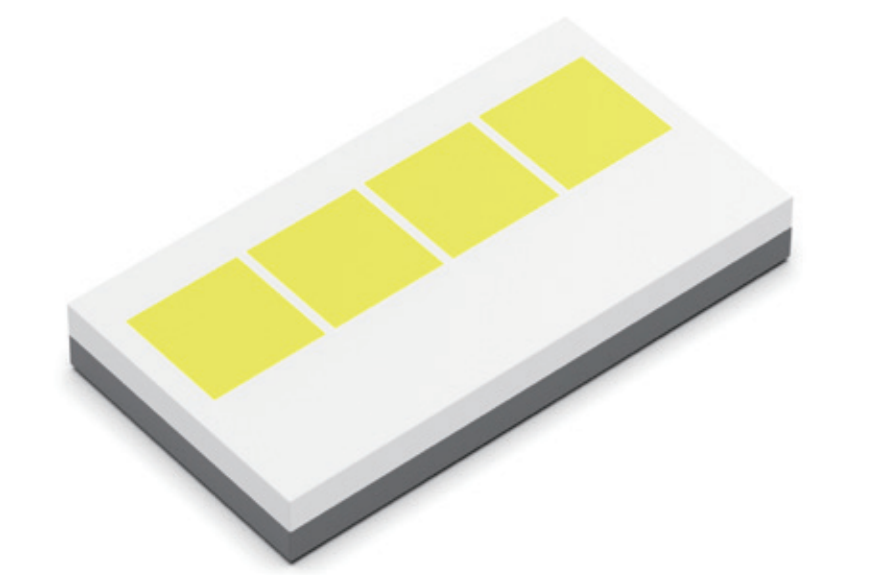

| D5231 |
 |
D5231T1S-XX60 |
12W |
1000 |
1500 |
6000 |
12.40 |
5.20*3.10*0.8 |
|
